自動車鋼鉄管

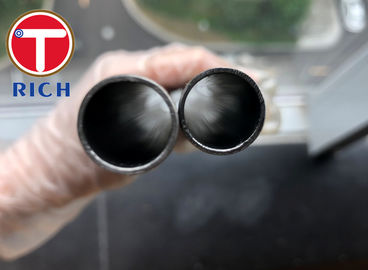

Torich E355 Shock Absorber E235 Gas Spring Steel Pipe EN10305-4 Referenced Standard: EN10027-1, Designation system for steels-part1: Steel names EN10027-2, Designation system for steels-part2: Numerical system EN10204:2004,Metallic products-Types of inspection documents EN10266:2003 Steel tubes, fittings and structural hollow sections- symbols and definitions of terms for use in products standard Chemical composition: Steel grade % by mass Steel name Steel number C max Si max

17.3 mm 19.1 mm JIS G3472 Grade STAM390G Specifies the ERW carbon steel tubes used for automobiles 機械構造用炭素鋼鋼管 JIS G3445(STKM) JIS G3472(STAM) 機械､自動車､家具､航空機,その他の機械部品用｡ ASTM A512 ASTM A513 ASTM A519 BS980 BS1717 BS1775 DIN2391 DIN2393 DIN 2394 JIS G3472,This Japanese Industrial Standard Specifies the electric resistance welded (ERW) carbon steel tubes used for automobiles Outside diameter:15.0mm up to and including127.0mm Wall thickness:1.0mm up to and including 7.0mm

JIS G3472 electric resistance welded carbon steel tube for automobile Type: Welded carbon steel pipes Application: For automobile parts Technique: Cold-finished, hot-finished, ERW Product Description Chemical composition: Steel Grade Chemical Composition % C Si Mn P S STAM 290GA 0.12 max. 0.35 max. 0.60 max. 0.035 max. 0.035 max. STAM 290GB STAM 340G 0.20 max. 0.35 max. 0.60 max. 0.035 max. 0.035 max. STAM 390G 0.25 max. 0.35 max. 0.30~0.90 0.035 max. 0.035 max. STAM 440G 0

JIS G3472 Electric resistance welded carbon steel tubes for automobile Grade: STAM290GA STAM290GB STAM340G STAM40G STAM470G STAM500G STAM440H STAM470H STAM500H STAM540H Thickness: 2.0-25.0mm Out Diameter: 10.2-660 mm Length:5.8M/12M.max Application: Boiler, electricity, mechanical, structural,gas cylinder, chemical, offshore and oil service. Surface Finishing:Anti-corrosion and high-temperature resistant with black painting. Packing: Bundles, seaworthy wooden cases.With or

Torich JIS G3429 STH12 STH21 Automotive Precision Steel Tube Introduction: Standard: JISG3429 Type:Carbon Diameter: Od: 5-420mm, Wall thickness: 0.5-50mm length:12mmax Grade: STH 21, STH11,STH12,STH22,STH31 Produce method:Seamless Usage: Pipes are used in oil, air, etc. Feature: High pressure Chemical components: C Si Mn P S Ni Cr Mo STH11 ≤0.5 0.1-0.35 ≤1.8 ≤0.035 ≤0.035 - - - STH12 0.3-0.41 0.1-0.35 1.35-1.7 ≤0.03 ≤0.03 - - - STH21 0.25-0.35 0.1-0.35 0.4-0.9 ≤0.03 ≤0.03 ≤0

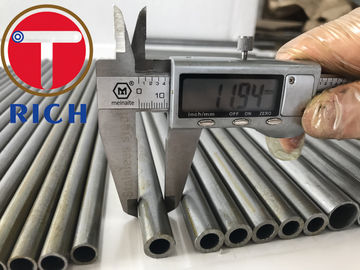

TORICH Welded Precision Steel Tube EN10305-2 E235 E355 Quick Detail: Product name Welded Precision Steel Tube EN10305-2 E235 E355 Steel Grade E155, E195, E235, E275, E355 Size Range OD range:15-200mm WT range: 0.8-16mm Tolerance OD: (+/-0.06mm) WT: (+/-0.03mm) ID surface 0.4μm Straightness ≤0.5mm/1m Roundness ≤0.5mm Regular specifications 23.2X1.6, 42X3, 25.4X0.9, 15x1, 19x1.5, 20x1, 20x1.5 Delivery Condition +C, +LC, +SC, +A, +N Standard DIN 2393, ASTM-A513-t6, EN10305, ASTM

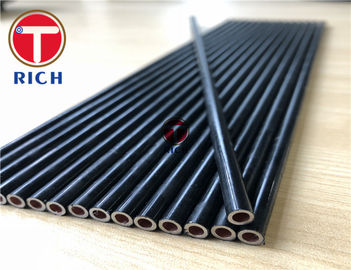

Double-Layer Coiled Pipe In Automobile Braking System And Fuel Transportation Pipeline​ SAE J526 Welded low-carbon tubing EN10305-6 Welded cold drawn tubes from hydraulic and pneumatic power systems ASTM A254 Copper-brazed steel tubing BHG1, SPCC, SPCD, SPCEN, ST14, ST15, ST16, DC04, DC05, DC06 O.DXThickness (mm) Min Burst Pressure (Mpa) Elongation (%) inside clearness (g/ m³) 4.76 (3/16") X 0.71 110 ≥25 ≤0.16 6 X 0.71 85 ≥25 ≤0.16 6.35 (1/4") X 0.71 78 ≥25 ≤0.16 8 X 0.71 67

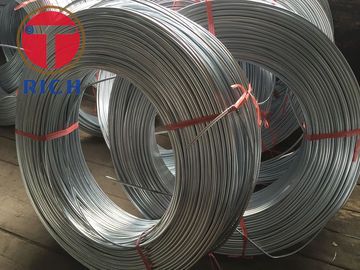

Poly-Armour PVF Steel Brake/Fuel/Transmission Line Tubing Coil automotive steel pipe Automotive steel tubes Flattening&Bending Test DW No crack SW Not mentioned. Tolerance : Outside Dia: Nominal +/-0.1mm Wall thickness: Nominal +/-0.1mm Appearance : No harmful defect Automotive steel tubes material: Chemical Composition: C Mn P S 0.12Max 0.50Max 0.04Max 0.045Max Mechanical properties T.S. Y.P. E.L HR30T 30kg/mm2min 18kg/mm2min 25%min 65Max Corrosion Resistance (Hours) Zn8μm

Bundy Tube Bundy Pipe PVF Coated Bundy Tubes Copper brazed double wall steel tube is made of steel strips which is copper plated on both sides.It has widely applied for automobiles,refrigerators and the other hydraulic system industries. Dimension and specification O.D. mm Thickness mm Weight g/m Assurance pressure kg/cm3 4.76 0.7 70.28 350 6.00 0.7 91.76 350 6.35 0.7 97.75 350 7.00 0.7 108.75 350 7.14 0.7 111.17 350 8.00 0.7 126.31 350 Tolerance O.D. and W.T. +/-0.08mm
