自動車鋼鉄管

DIN2391 EN10305-1 E235 E355 Carbon Shock Absorber Tube 10x1 12x1 1.Quick Detail: Black Phosphated Hydraulic Tubes with High Precision EN10305-1, EN10305-4, DIN2391, E235, E355, ST37.0, ST44.0, ST52.0 Steel Pipes with high precision for Hydraulic Systems Black Phosphating 2.Production process: DIN series tubes, cold drawn and bright annealed precision seamless steel tube is used as the tube to be phosphated. The phosphorization is realized with the imported chemical fluid to

TORICH ASTM A295 High Carbon Quality Precision Automotive Bearing Steel Tubes Brief introduction: Size: OD: 5-114mm WT: 1-14mm Material: GCr15(52100,SUJ2,SUJ3,100Cr6, SKF3S), 20CrNiMo(8620H,4118H) SKF,30Cr13 Feature: High Dimensional Accuracy, Less Surface Decarburization, High utilization rate and stable properties Application: Automotive, electrical, instrumentation,aerospace etc. Surface condition: 1. Possible oxide skin 2. Surface oxide free skin (common annealing,

Low Carbon Steel Tube Small Diameter For Automobiles Copper brazed double wall steel tube is made of steel strips which is copper plated on both sides.It has widely applied for automobiles,refrigerators and the other hydraulic system industries. Dimension and specification O.D. mm Thickness mm Weight g/m Assurance pressure kg/cm3 4.76 0.7 70.28 350 6.00 0.7 91.76 350 6.35 0.7 97.75 350 7.00 0.7 108.75 350 7.14 0.7 111.17 350 8.00 0.7 126.31 350 Tolerance O.D. and W.T. +/-0

Cold Drawn Seamless Steel Pipe ASTM A519 Carbon Pipe for Automotive Usage 1.Size range: O.D.:6-350mm W.T.:1-50mm L:max12000mm 2.Standard: ASTM A519 3.Applications: Machinery, Mechanical engineer 4.Chemical Components and Mechanical Property Steel Grade and Chemical Compositions: Steel C Mn P S Si Cr Mo Grade max max max max min 1008 0.10 0.30-0.50 0.040 0.050 1010 0.08-0.13 0.30-0.60 0.040 0.050 1018 0.15-0.20 0.60-0.90 0.040 0.050 1020 0.18-0.23 0.30-0.60 0.040 0.050 1026 0

BS6323-6 CEW 1020 St37.2 Cold Drawn Welded Precision Tube Shock Absorber Car Quick Detail: Product name BS6323-6 CEW 1020 St37.2 Cold Drawn Welded Precision Tube Shock Absorber Car Steel Grade CEW, 10#, 20#, St37, St52, St35.4, St52.4, ST35, ST37.4, E155, E195, E235, E275, E355 Size Range OD range:15-200mm WT range: 0.8-16mm Tolerance OD: (+/-0.06mm) WT: (+/-0.03mm) Regular specifications 23.2X1.6, 42X3, 25.4X0.9, 15x1, 19x1.5, 20x1, 20x1.5 Straightness ≤0.5mm/1m Roundness ≤0

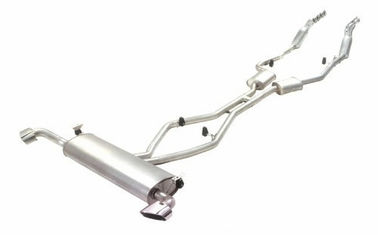

STKM11A Automotive Welded Steel Tube Cold Drawn for Auto Exhaust System application Automobile and motorcycle Shock Absorber Pipe Hydraulic-cylinder Pipe Mechanical steel pipes for auto and motor parts Gas Spring pipe motor casing pipe size length--2~12m WT--2~5mm OD--10-20mm material STKM11A Production process ordinary high-frequency welded pipe Advantages small diameter and thick wall Surface Quality The internal and external surfaces of the steel tube are not allowed to

Seamless Carbon and Alloy Steel Mechanical Tubing ASTM A519 For Hydraulic Systems Introduction Seamless carbon and alloy steel mechanical tubing plays a crucial role in hydraulic systems, providing a reliable conduit for fluid transmission and power transfer. The American Society for Testing and Materials (ASTM) A519 specification sets the standards for the manufacturing and quality control of such tubing. This article delves into the material, specification, chemical

SPCC 4.76*0.7 Nylon 12 Coated Air Brake PA12 Bundy Tubes PA12 bundy tubes for automotive industrial,the coating of PA11 and PA12 is the topest coat on bundy tubes. It can protect tubes from corrosion resistance and wear resistance, and the salt spray time is above 2000hours. It is widly used in vehicle brake pipe system,power steering system, fuel system ect. Detail spec: Material :SPCC,1010,1008 ect. Size:4.76*0.7 6*0.7 6.35*7 8*0.7 other specification can be customize.

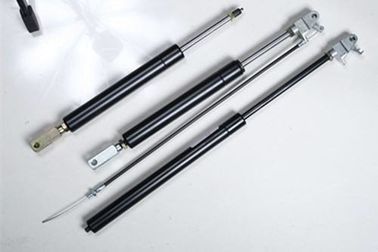

En10305-2 E235 Seamless Ms Pipes Precision cylinder hydraulic Gas Spring Steel Tubes 1. Introduction: Product name Gas spring steel tube Stadard EN10305-1 Technique Cold drawn OD 5-420mm WT 0.5-50mm Application Automobile components, heavy truck components Section shape Round Surface treatment Polished Type Precision seamless tubes Terms of Delivery FOB,CIF,CFR,CPT,etc Terms of Payment L/C,T/T,Money Gram,Western Union,etc Transportation Ocean,Land,Air Certificate ISO,CE
