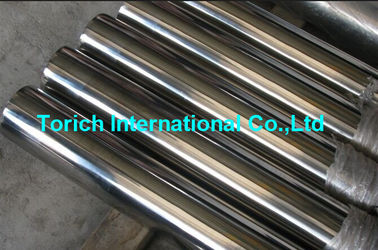

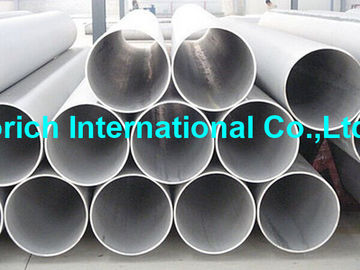

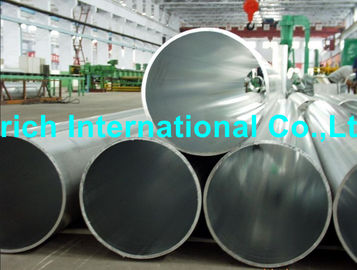

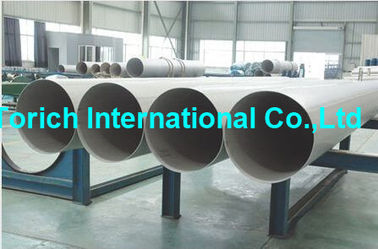

ASTM B444 のニッケルのクロムのモリブデンのニッケル合金の管 UNS N06625 UNS N06852
製品詳細
ニッケル合金の管
,熱交換器の管
ASTM B444のニッケル クロム モリブデン コロンビウムの合金（UNS N06625およびUNS N06852）およびニッケル クロム モリブデン ケイ素の合金（UNS N06219）の管および管
等級: | TP304 | TP304L | TP304LN | TP316 | TP316L | TP316LN | TP316LN | TPXM-29 | TP304N |
UNS | S30400 | S30403 | S30453 | S31600 | S31603 | S31653 | S31653 | S24000 | S30451 |
最高C | 0.08 | 0.035 | 0.035 | 0.080 | 0.035 | 0.035 |
|
|
|
最高Mn | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 |
|
|
|
最高P | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 |
|
|
|
最高S | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 |
|
|
|
最高Si | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
|
|
|
Cr | 18.0-20.0 | 18.0-20.0 | 18.0-20.0 | 16.0-18.0 | 16.0-18.0 | 16.0-18.0 |
|
|
|
NI | 8.0-11.0 | 8.0-13.0 | 8.0-12.0 | 11.0-14.0 | 10.0-14.0 | 11.0-14.0 |
|
|
|
Mo | … | … | … | 2.00-3.00 | 2.00-3.00 | 2.00-3.00 |
|
|
|
チタニウム | … | … | … | … | … | … |
|
|
|
コロンビウム | … | … | … | … | … | … |
|
|
|
タンタル | … | … | … | … | … | … |
|
|
|
窒素 | … | … | 0.10-0.16 | … | … | 0.10-0.16 |
|
|
|
バナジウム | … | … | … | … | … | … |
|
|
|
銅 | … | … | … | … | … | … |
|
|
|
セリウム | … | … | … | … | … | … |
|
|
|
ほう素 | … | … | … | … | … | … |
|
|
|
アルミニウム | … | … | … | … | … | … |
|
|
|
等級: | TP316N | … | … | … | … |
UNS | S31651 | N08367 | N08926 | S31254 | S32654 |
Tensilの条件
等級 | 引張強さ | 降伏強さ 最低のksi | 延長 | |
304、316 | 75 [515] | 30 [205] | 35 | |
304L、316L | 70 [485] | 25 [175] | 35 | |
XM-29 S24000 | 100 [690] | 55 [380] | 35 | |
304N、316N | 80 [550] | 35 [240] | 20 | |
304LN、316LN | 75 [515] | 30 [205] | 35 | |
-
DOM の生産の溶接された鋼鉄管を冷間圧延する自動車部品 ASTM A513
Auto Parts ASTM A513 Welded Steel Tubes with DOM production ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Applications: for Machinery, Mechanical Engineering 1. Standard: ASTM A513 cold rolling welded precision steel tubes 2. Steel Grade: SAE1010, SAE1020, other materials upon agreement with customers. 3. Production method: Cold rolling on the weled steel tubes, to reach high accuracy on the OD and WT tolerance 4. Size range: O.D.:6-350mm W.T. -
25mm の直径の油圧装置のための明るいアニーリングの継ぎ目が無い鋼鉄管
EN10305-1 E235 E355 NBK Bright Annealing Precision Steel Pipes for Hydraulic Systems EN10305-1 NBK Bright Annealed Precision steel pipes for Hydraulic system OD:4-80 (mm) WT0.5-10 (mm) Length 1000-12000mm Product name: Seamless Precision Steel Pipe Application: for hydraulic systems precision steel pipes for Hydraulic system OD (mm) WT (mm) Length (mm) 4 0.5 5800-6000 4.0 1.0 5800-6000 5.0 1.0 5800-6000 6.0 1.0 5800-6000 6.0 1.5 5800-6000 8.0 1.0 5800-6000 9.5 0.89 5800-6000 -
油圧装置のための精密継ぎ目が無く黒いリン酸で処理する鋼鉄管
Steel Pipes with high precision for Hydraulic Systems with Black Phosphating surface Black Phosphated Hydraulic Tubes with High Precision and tight tolerance, the tubes are produced by precision cold drawn and cold rolling, then bright annealed in a protected atmosphere, afterwards it is blackphosphated on the surface Production process: DIN series tubes, cold drawn and bright annealed precision seamless steel tube is used as the tube to be phosphated. The phosphorization is -
精密継ぎ目が無い電流を通された鋼鉄管 DIN2391 EN103052 ST35.0 ST37
Precision Seamless Galvanized Steel Tubes DIN2391 EN103052 ST35.0 ST37 Production Process: Cold rolling by Cold pilger machine and Cold rolling machine,galvanized and zinc plated could be applied. Cold Rolled and Galvanized Steel Tube Production process: DIN highly accurate, cold rolled and bright seamless steel tube is used as the tube to be galvanized. The outer wall of tube is electroplated. The caps are covered at two ends of tube to prevent from the dust. Main Features:
