構造の石油精製310S 6.35mmのステンレス鋼の管
製品詳細
6.35mmのステンレス鋼の管
,310sステンレス鋼の管
,構造の石油精製310Sの管

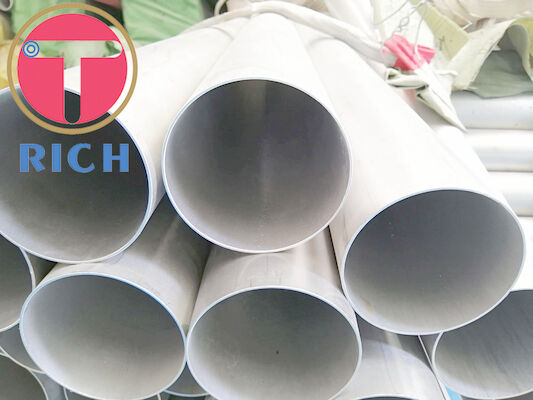

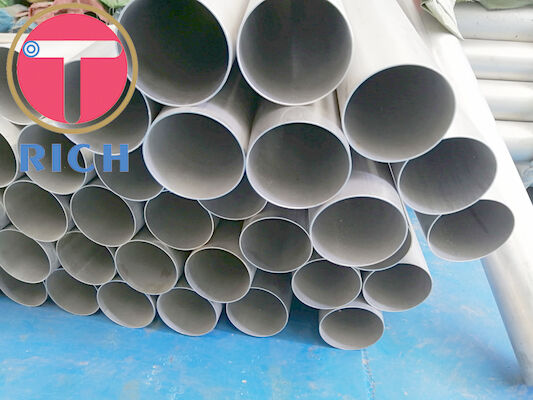

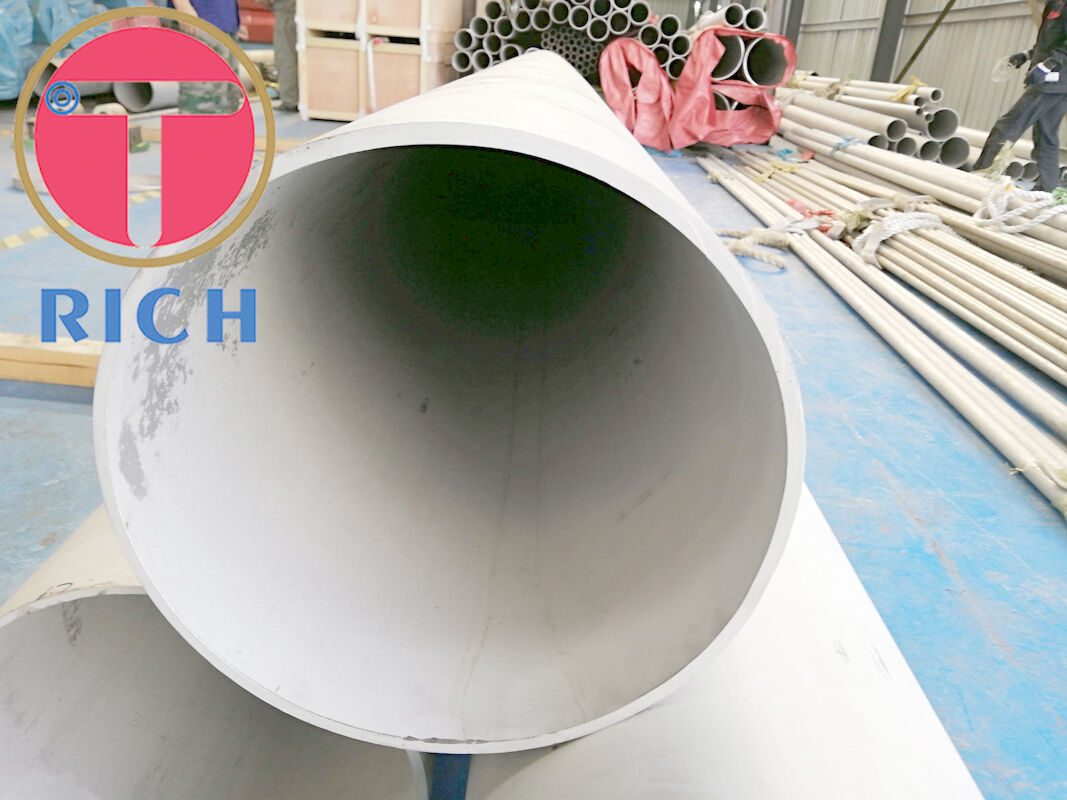

建設石油精製大直径310Sステンレス鋼管
大直径の直縫溶接管の製造プロセス:
スチールコイル→再試験→平面開き横切削→切削 (長長切削)→縁の設計と磨削→
プレートのブット・ウェルディング→形作 (折り/リリング)→端の四角化&タック・ウェルディング→ウェルディングシームクリーニング→
自動溶接→放射線検査→溶液処理→丸め→直し→端向き処理→
水静止試験→ピクルング・パシベーション→洗浄・乾燥→放射線検査→完成品試験→マークリング→
梱包→ 完成品の保管→ 輸送
1グレード:
304/304L/304H, 316/316L, 321/321H, 317/317L, 347/347H, 309S, 310S, 2205, 2507, 904L, 430J1L, 444, 445J2, 44660 (1.43011 について43061 について49481 について44011 について44041 について45711 について45411 について48331 について48781 について45501 について44621 について4438税金について
2サイズ:
OD 6.35 mm - 114 mm
WT 0.2 mm - 3.5 mm
3標準:
ASTM A213,A249,A269,A312,A511,A789,A790,A376
EN 10216-5,EN 10297,DIN 17456,DIN 17458,
JISG3459,JIS GS3463,GS3467,JIS G3448
GOST 9940,GOST 9941
4認証:
ISO9001 ISO14001 OHSAS18001 PED AD2000 など
| サイズ範囲 |
過剰摂取:NPS 1/8 -80, BN 6 - 2000, 10.3 - 2030 アラオ毛細血管
WT: そうですSch5s-Sch160s,SchXXH,STD,XS,XXS について
長さ:カスタマイズ
|
| グレード |
S32750, 00Cr25Ni7Mo4N, 022Cr25Ni7Mo4N, 1 つ441, 1.4307/1.4301/304L/3, S30408/S30403, 0Cr18Ni9DQ, 1.4948/304H, 07Cr19Ni10, S30409, 1.494806Cr23Ni13
S30908,SUS309S,SUS310S,1号4845S31008,S31008S,06Cr25Ni20,0Cr25Ni20,1.4401/1.4404/316/31,
S31635,SUS316Ti, 1.4571, 1.4571/316Ti, S31703, 022Cr19Ni13Mo3, 00Cr17Ni12Mo2,
S31703,SUS317L,1号4438S41008,SUS410S, 1.4, 06Cr13, S11306, 0Cr13, S42000, SUS420J1, 1.4021SUS420J2 14028,
S43020,430F,SUS430F, 1.4104, ,
301302, 303, 305, 309, 310, 316, 317, 321, 347, 403, 405, 416, 431, 444 など
22052507, 304/304L, 304DQ, 304H, 309S, 310S, 316/316L, 316Ti, 317L
410S, 420J1, 420J2, 430F, 254Smo, 1 つ4529,
HC276, 800, 825, 600, 601, 718, 750, 400, 630, XM19, C4
S30815, S31254, 174PH, F51, F60, F53, S32760, 253MA, HC2000, 800H, 926
GH2132,GH4169,GH3030,GH3039,GH4151,N04400,HB3,0Cr13Ni5Mo,N08367,N08810
|
適用:
電力,石油精製,原子力,飲料水
海上工学・造船,天然ガス,紙製造,建設
-
