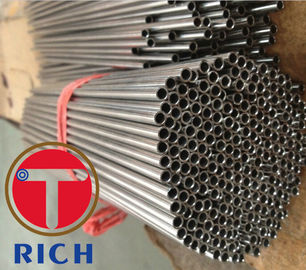

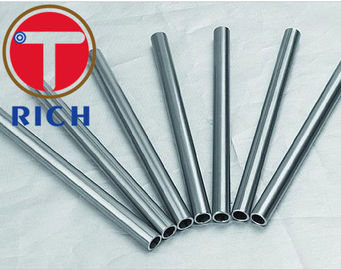

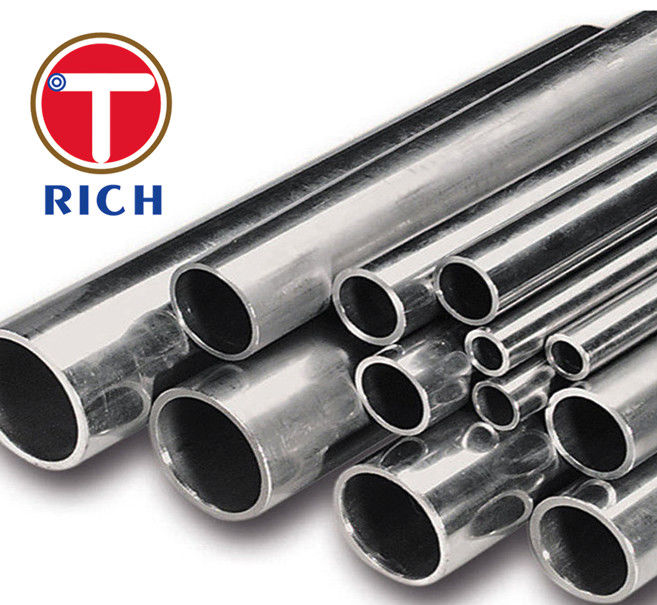

喧騒11850の食品工業のために継ぎ目が無いX5crni1810ステンレス鋼の管/管
製品詳細
ステンレス鋼丸管
,ステンレス製の管の鋼鉄
DIN 11850 食品産業用ステンレス鋼管 尺寸,材料
材料:
X5CrNi1810 - 材料番号"4301
X6CrNiMoTi17122 材料番号 14571
X6CrNiMo17122 材料番号"4401
X2CrNiMo18143 材料番号 14435
X6CrNiTi1810 材料番号 14541
最小注文量: 5MT
支払い条件:L/CまたはT/T
供給能力: 700MT/月
配達時間: FOB,CFR,CIFは可能
30~60日 詳細PO数量に応じて
表 1 パイプの寸法と許容される偏差
| 定額 | シリーズ | 許容性 | 体重 | コメント | ||||
| 1 | 2 | 3 | OD.dev は | 壁の厚さ | ||||
| 10 | 12 |
|
| ±012 | 1.0 | ±10% | 0.27 | 1 シリーズより大きな壁厚さのパイプは,この名直径範囲の既存のパイプ規格から選択しなければならない. |
|
| 13 |
| ±03 | 1.5 | ±10% | 0.43 | ||
|
|
| 14 | ±03 | 2.0 | ±10% | 0.60 | ||
| 15 | 18 |
|
| ±012 | 1.0 | ±10% | 0.42 | |
|
| 19 |
| ±03 | 1.5 | ±10% | 0.66 | ||
|
|
| 20 | ±03 | 2.0 | ±10% | 0.90 | ||
| 20 | 22 |
|
| ±012 | 1.0 | ±10% | 0.51 | |
|
| 23 |
| ±03 | 1.5 | ±10% | 0.81 | ||
|
|
| 24 | ±03 | 2.0 | ±10% | 1.10 | ||
| 25 | 28 |
|
| ±015 | 1.0 | ±10% | 0.66 | |
|
| 29 |
| ±1% | 1.5 | ±10% | 1.03 | ||
|
|
| 30 | ±03 | 2.0 | ±10% | 1.40 | ||
| 32 | 34 |
|
| ±015 | 1.0 | ±10% | 0.82 | |
|
| 35 |
| ±1% | 1.5 | ±10% | 1.26 | ||
|
|
| 36 | ±1% | 2.0 | ±10% | 1.70 | ||
| 40 | 40 |
|
| ±02 | 1.0 | ±10% | 0.97 | |
|
| 41 |
| ±1% | 1.5 | ±10% | 1.50 | ||
|
|
| 42 | ±1% | 2.0 | ±10% | 2.00 | ||
| 50 | 52 |
|
| ±02 | 1.0 | C10% | 1.26 | |
|
| 53 |
| ±1% | 1.5 | ±10% | 1.90 | ||
|
|
| 54 | ±1% | 2.0 | ±10% | 2.60 | ||
| 65 | 70 |
|
| ±03 | 2.0 | ±10% | 3.43 | |
| 80 | 85 |
|
| ±03 | 2.0 | ±10% | 4.16 | |
| 100 | 104 |
|
| ±03 | 2.0 | ±10% | 5.03 | |
| 125 | 129 |
|
| ±04 | 2.0 | ±10% | 6.36 | |
| 150 | 154 |
|
| ±04 | 2.0 | ±10% | 7.49 | |
引用された基準:
DIN 2413 スチールパイプ 内部圧力に耐える壁厚さの計算
DIN 17456 一般要求のためのシームレス円形不?? 鋼管 技術仕様
DIN 50049 材料試験証明書
-
