steel mechanical tubing
"

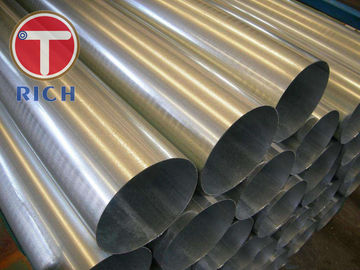

安定した性能の自動車鋼鉄管は炭素鋼の機械管を溶接しました
TORICH ASTM A787 Q195 SAE1008 DX53 Welded Carbon Steel Mechanical Tubing Introduction: Name Welded Carbon Steel Mechanical Tubing OD 28.6-127mm WT 0.8-2.5mm Length Max12000mm Usage mechanical components,automobile, etc Technics Welded Section shape Round Material Q195,Q235,Q345,SAE1008,SAE1022,DX53,DX51,DC04,SA1C,etc Surface treatment Polished,oiled Payment T/T,L/C,Money Gram,Western Union QUALITY CONTROL: 1. Incoming Raw Material Inspection 2. Raw Material Segregation to

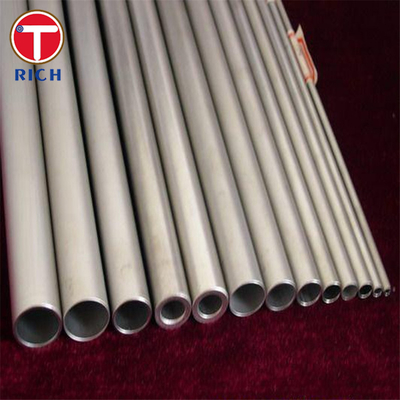

ASTM A511 MT316 ステンレス鋼のシームレスメカニカルチューブ
ASTM A511 MT302 MT303 MT303Se MT304 MT316 Stainless Steel Tube: Seamless Stainless Steel Mechanical Tubing Introduction Stainless steel tubes are widely used in various industries due to their excellent corrosion resistance, high strength, and durability. ASTM A511 MT302, MT303, MT303Se, MT304, and MT316 are seamless stainless steel mechanical tubing grades that offer exceptional performance in demanding applications. This article provides an overview of these grades,

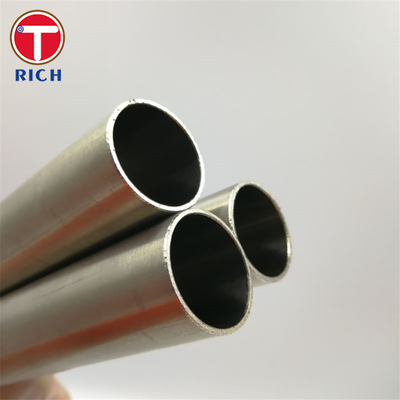

油圧装置のためのカーボンおよび合金鋼の機械管継ぎ目が無いAstm A519
Seamless Carbon and Alloy Steel Mechanical Tubing ASTM A519 For Hydraulic Systems Introduction Seamless carbon and alloy steel mechanical tubing plays a crucial role in hydraulic systems, providing a reliable conduit for fluid transmission and power transfer. The American Society for Testing and Materials (ASTM) A519 specification sets the standards for the manufacturing and quality control of such tubing. This article delves into the material, specification, chemical
4130 クロムモリチューブ 縫合のない炭素と合金鋼の機械チューブ
4130 Chrome Moly Tubing: Seamless Carbon and Alloy Steel Mechanical Tubing Material Specification 4130 Chrome Moly Tubing is a high-strength, low-alloy steel that is widely used in various industries due to its excellent mechanical properties and versatility. It is composed primarily of chromium and molybdenum, which enhance its strength, toughness, and resistance to wear and corrosion. Key Features High Strength : 4130 tubing offers a superior strength-to-weight ratio,

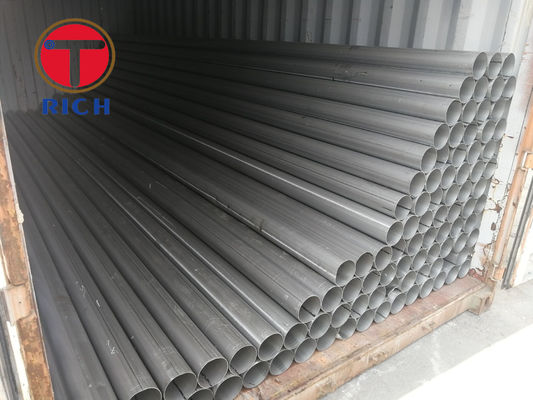

JIS G3314 SA1Dの合金鋼の機械管ERWのタイプ
JIS G3314 SA1D ERW Aluminized Steel Tubes ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Size : O.D.:6-350mm W.T.:1-12.5mm L:max12000mm Grade: 1008,1010, 1020, 1026 Production: ERW + DOM Steel Grade and Chemical Compositions: Steel Grade C Mn P S Si Cr Mo max max max max min 1008 0.10 0.5 0.035 0.035 1010 0.08-0.13 0.30-0.60 0.035 0.035 1018 0.14-0.20 0.30-0.60 0.035 0.035 1020 0.17-0.23 0.30-0.60 0.035 0.035 1026 0.22-0.28 0.60-0.90 0.035 0.035

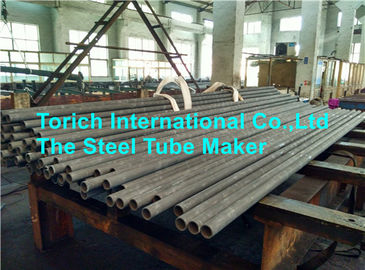

熱-扱われた ISO/FD683-17 鋼鉄機械管の風邪-引かれた鋼管
Heat Treated ISO / FD683-17 Steel Mechanical Tubing Cold Drawn Steel Pipe ISO/FD683-17 Heat-treated Ball and roller bearing steel tubes for Machinery and construction Standard : ISO/FD683-17 Steel grade: 100Cr6,100CrMnSi4-4,100CrMnSi6-4,20Cr3 20MnCr4-2 etc Steel Grade Material Chemical composition % C Si Mn P max S max Cr Mo Ni Through-hardening bearing steels B1 100Cr6 0.93-1.05 0.15-0.35 0.25-0.45 0.025 0.015 1.35-1.60 ≤0.10 / B2 100CrMnSi4-4 0.93-1.05 0.45-0.75 0.90-1.20 0
自動車鋼鉄機械管の丸型
ASTM A519 1008 1010 1020 1045 4130 High Quality Automotive Steel Tubes from TORICH Products Information: Size Range: OD: 4.0-350mm WT:0.5-50mm Length: max 12000mm Thickwall Steel Tube is our strength and regular production montly, mainly for machinery and engineering parts for our customers. Steel Grade/Steel Material: Steel Grade and Chemical Compositions: Steel C Mn P S Si Cr Mo Grade max max max max min 1008 0.10 0.30-0.50 0.040 0.050 1010 0.08-0.13 0.30-0.60 0.040 0.050

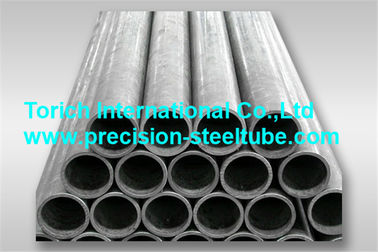

ASTM A513 の自動車鋼鉄管、カーボンおよび合金鋼鉄機械管
ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Size range: O.D.:6-350mm W.T.:1-12.5mm L:max12000mm Grade: 1010, 1020, 1026 Production: ERW + DOM Packing: In Hexagonal Bundles, with anti corrosion oil protection, with seaworthy packing Deliver condition: 1. A.W.H.R. "as welded" from hot-rolled steel 2. A.W.C.R. "as welded" from cold-rolled steel 3. S.D.C.R. "sink-drawn", cold-rolled steel 5. M.D. mandrel drawn 6. S.S.I.D. special smooth

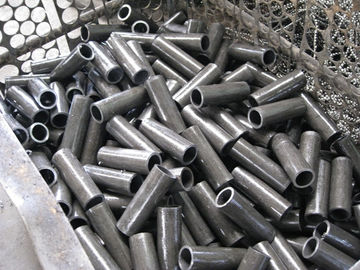

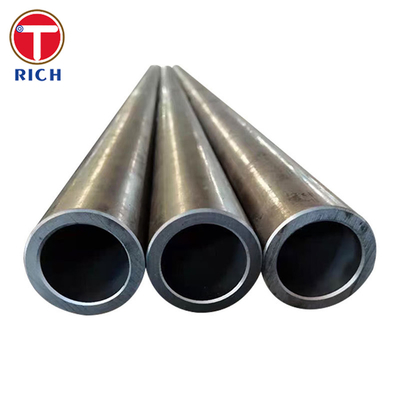

450mm の直径を機械で造る継ぎ目が無いカーボンおよび合金鋼鉄機械管
Seamless Carbon and Alloy Steel Mechanical Tubing Size range: O.D.:6-450mm W.T.:1-30mm L:max12000mm Steel Grade and Chemical Compositions: Steel C Mn P S Si Cr Mo Grade max max max max min 1008 0.10 0.30-0.50 0.040 0.050 1010 0.08-0.13 0.30-0.60 0.040 0.050 1018 0.15-0.20 0.60-0.90 0.040 0.050 1020 0.18-0.23 0.30-0.60 0.040 0.050 1026 0.22-0.28 0.60-0.90 0.040 0.050 1035 0.32-0.38 0.60-0.90 0.040 0.050 1045 0.43-0.50 0.60-0.90 0.040 0
